Ecolux

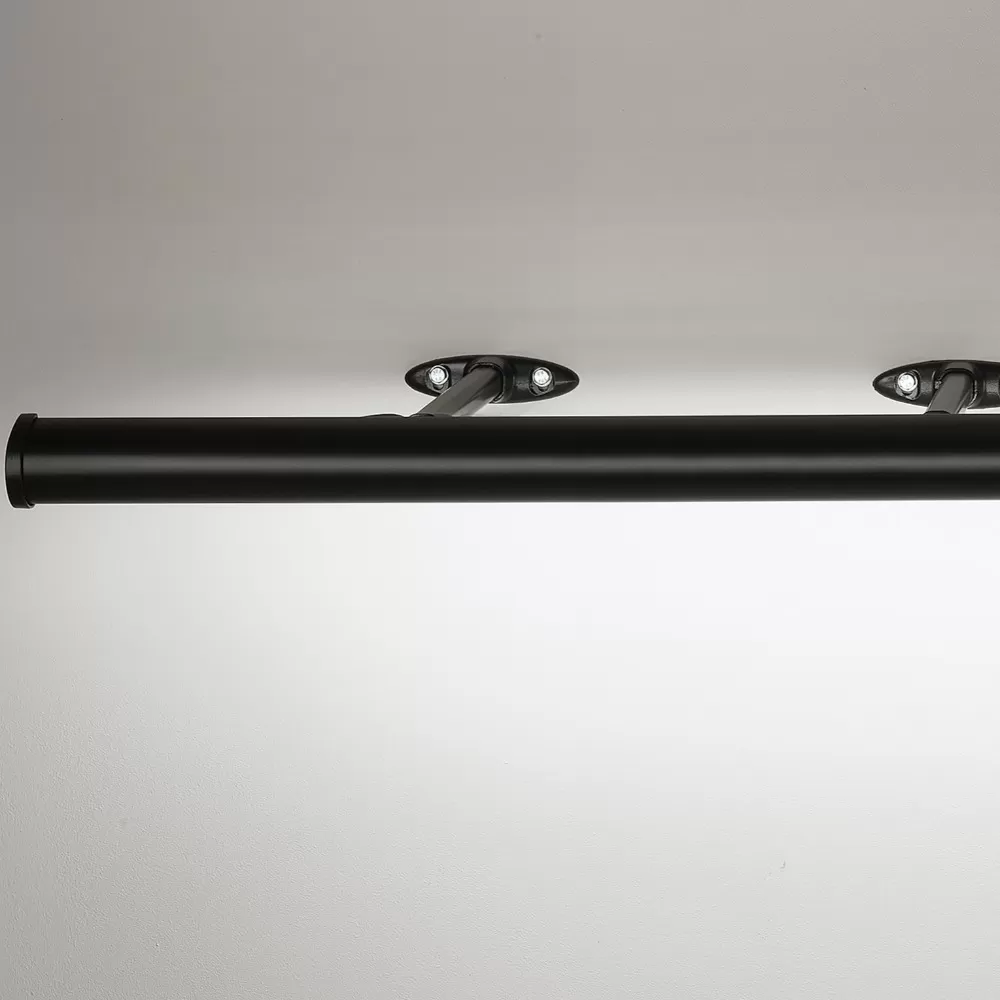

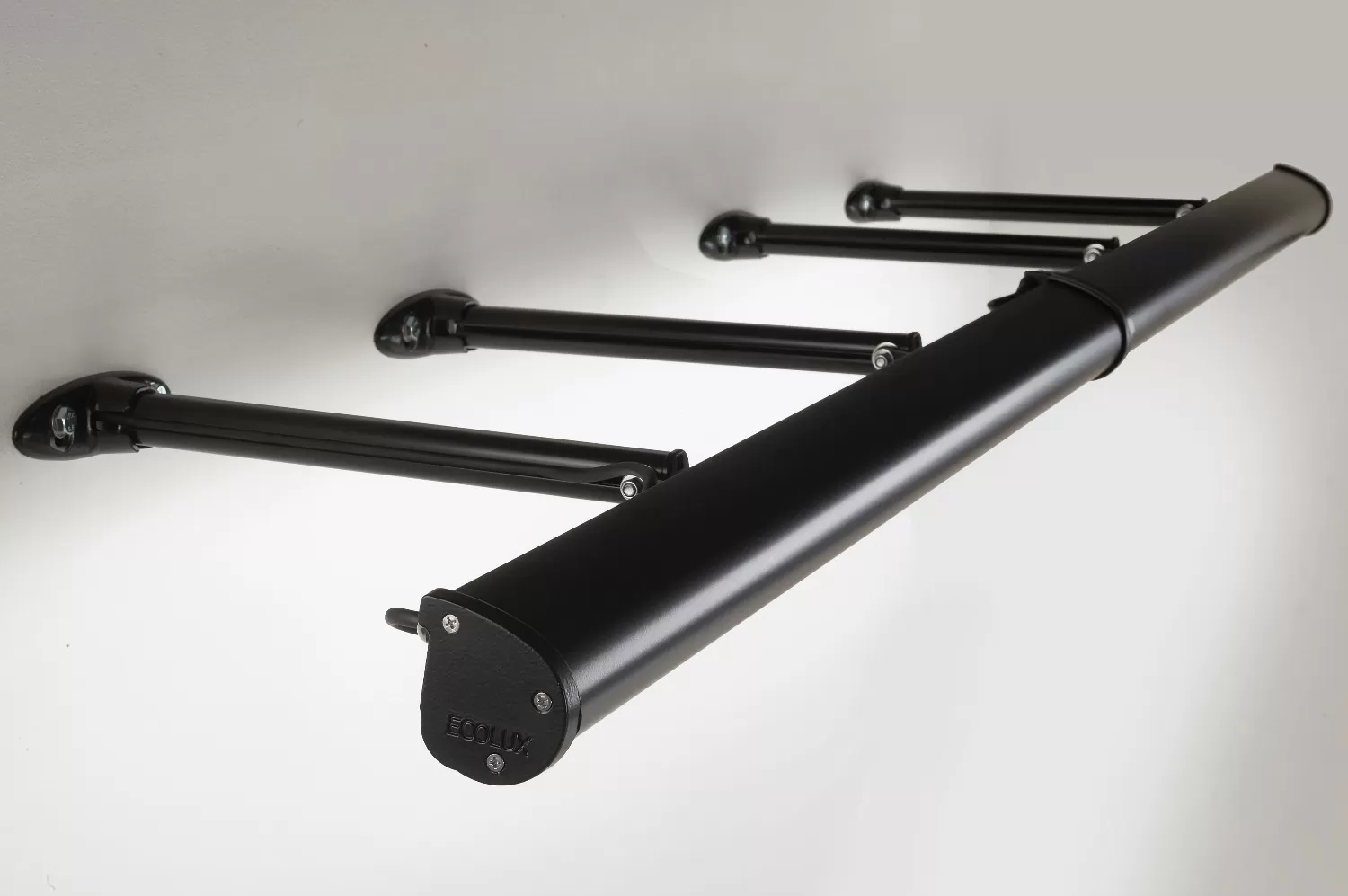

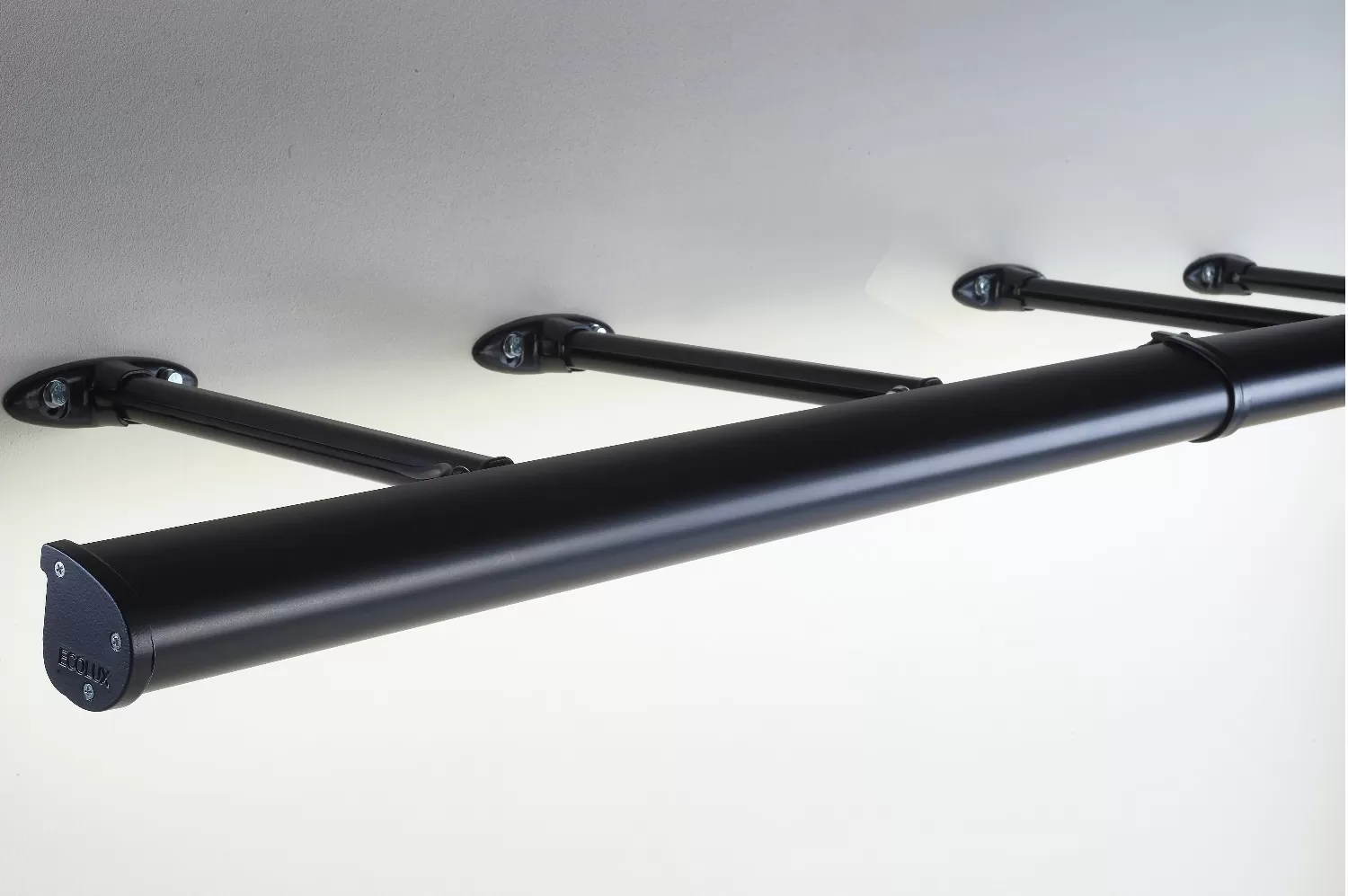

Engineered for simplicity and built for efficiency, the all-new ECOLUX sets a new standard in energy-saving LED sign lighting.
Details
The Ecolux is the latest addition to our Ecolux LED Range, delivering exceptional performance as one of the UK’s most advanced full-size

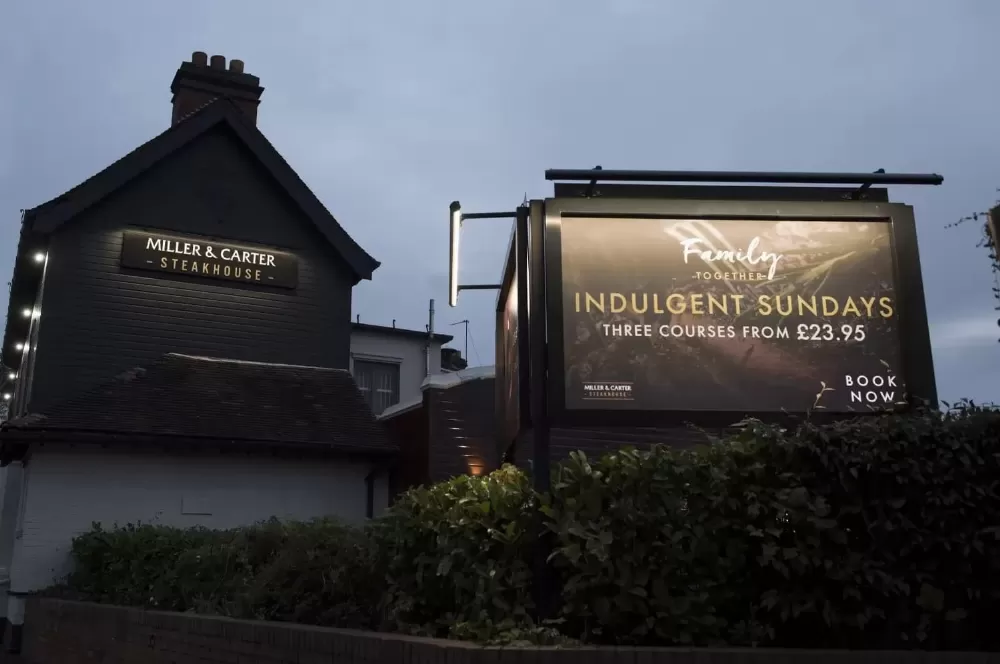

The Ecolux is the latest addition to our Ecolux LED Range, delivering exceptional performance as one of the UK’s most advanced full-size trough lighting systems. Purpose-built for modern signage, the Ecolux provides powerful, energy-efficient illumination suitable for retail, hospitality and commercial applications across the country — including pubs, bars, cafés, restaurants, shop fronts, supermarkets, petrol stations, breweries and more.

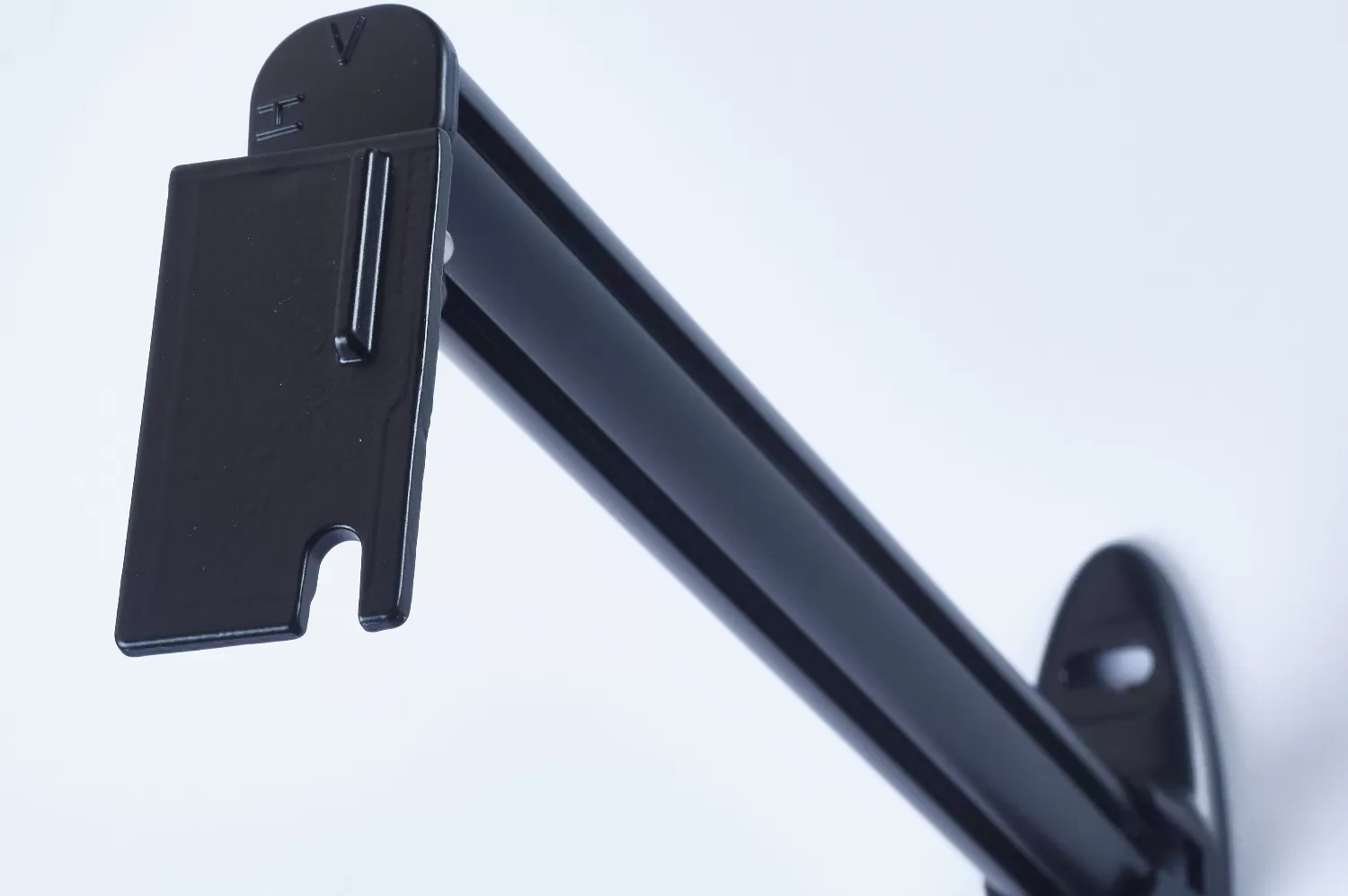

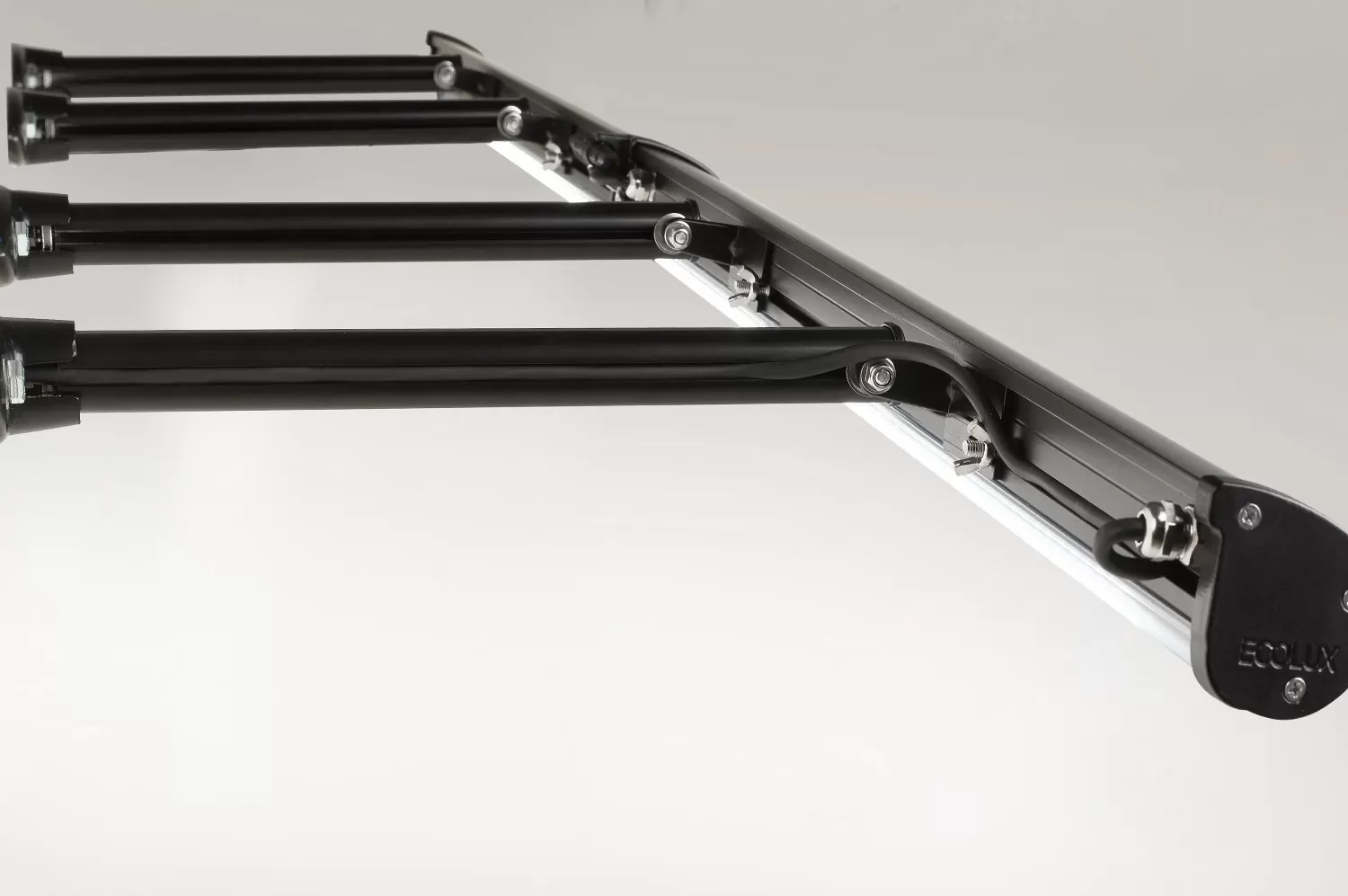

Fitted with our new multi-bracket system, the Ecolux offers a double-slotted design with a built-in chamber that allows installers to switch instantly between horizontal and vertical fixing positions. This smart adaptability eliminates awkward mounting issues, making installation faster and more reliable on any fascia.
Installers also benefit from a unique spring-clip rapid-fix mechanism, positioned within the rear channel of the fitting. The clip slides smoothly along the body and locks onto the retaining point of the bracket, giving a secure, tool-light fixing method: ideal for cold or challenging site conditions. This simple but clever innovation provides one of the quickest and most versatile installation solutions available on any LED trough light in the UK.

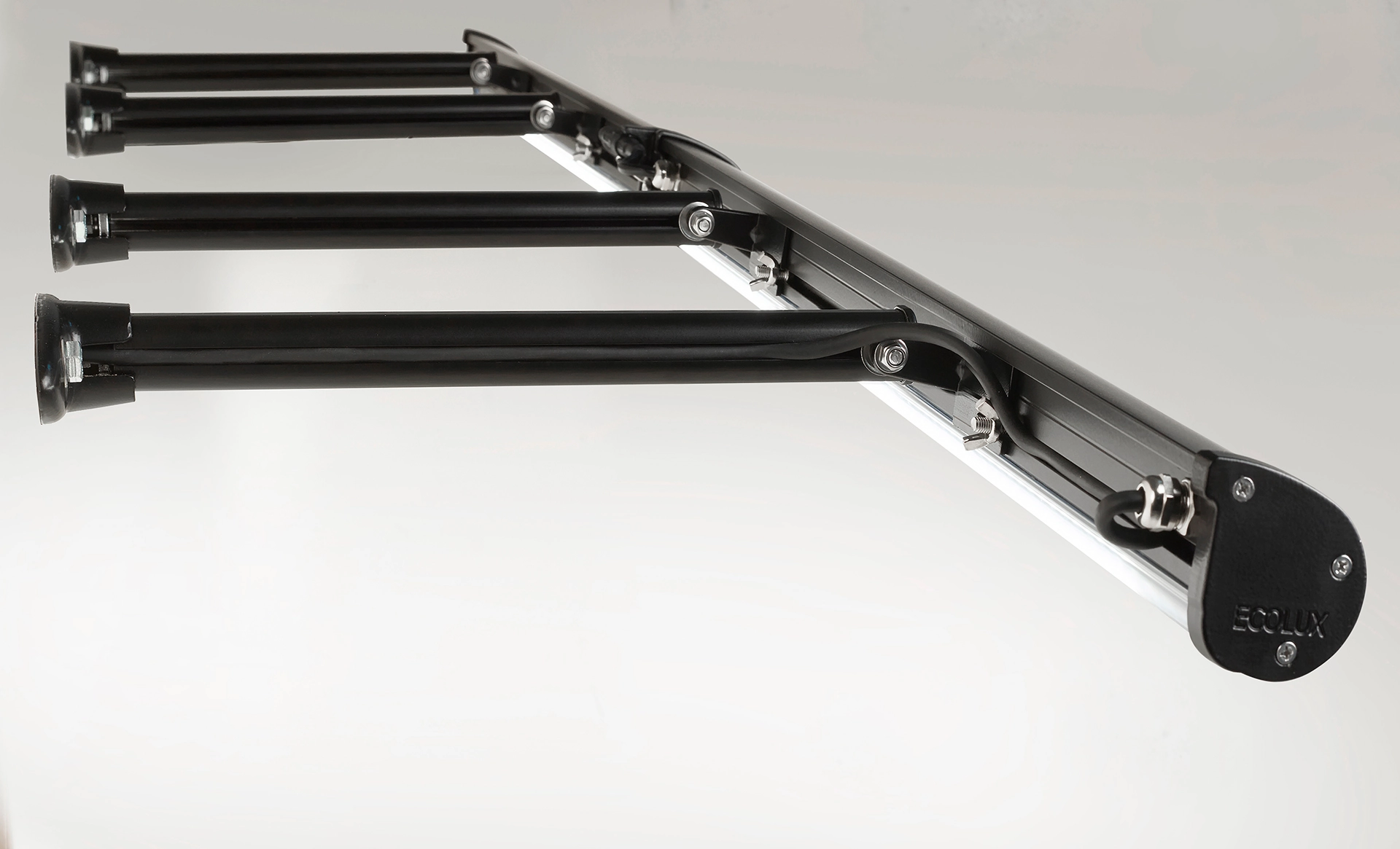

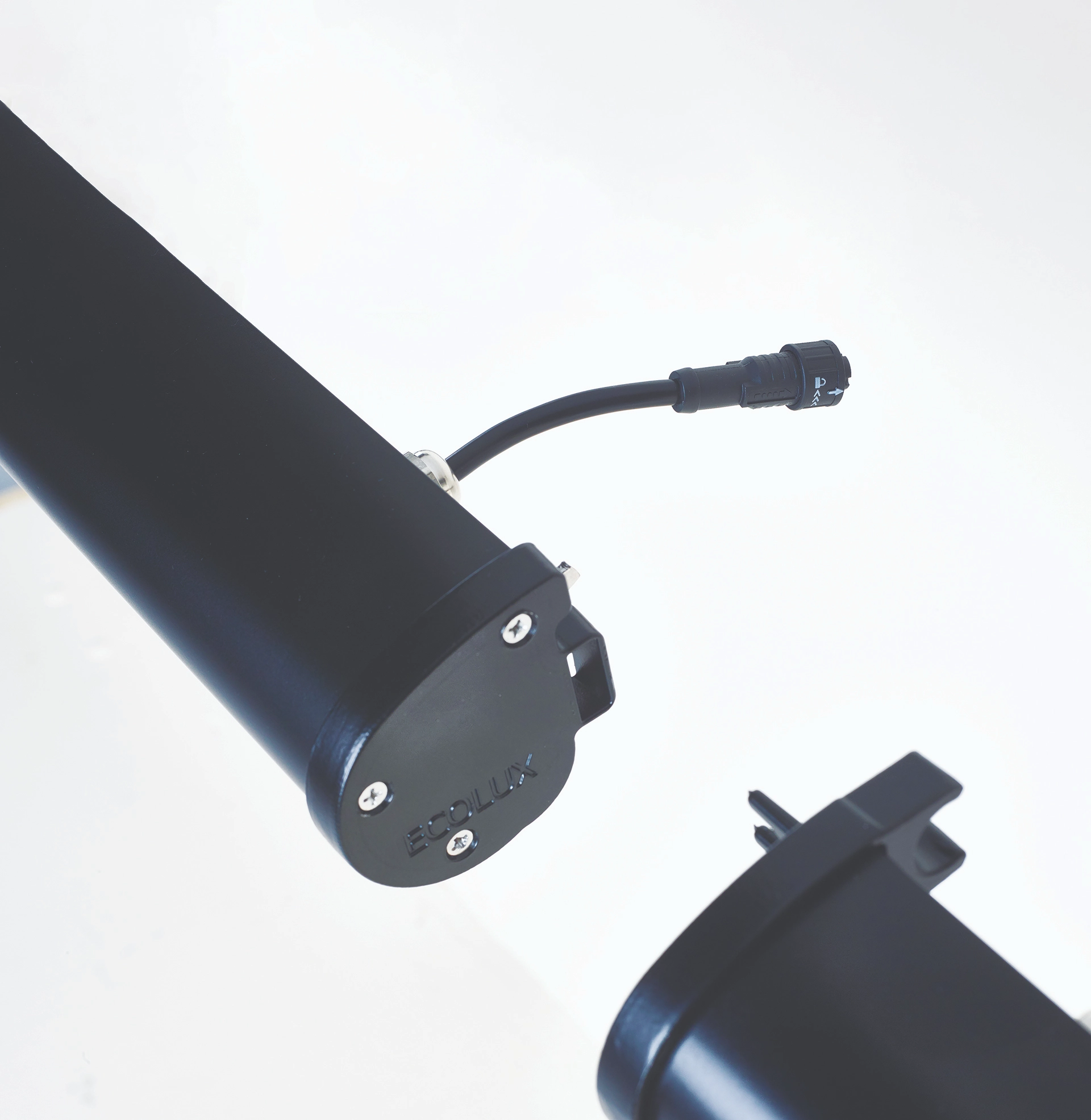

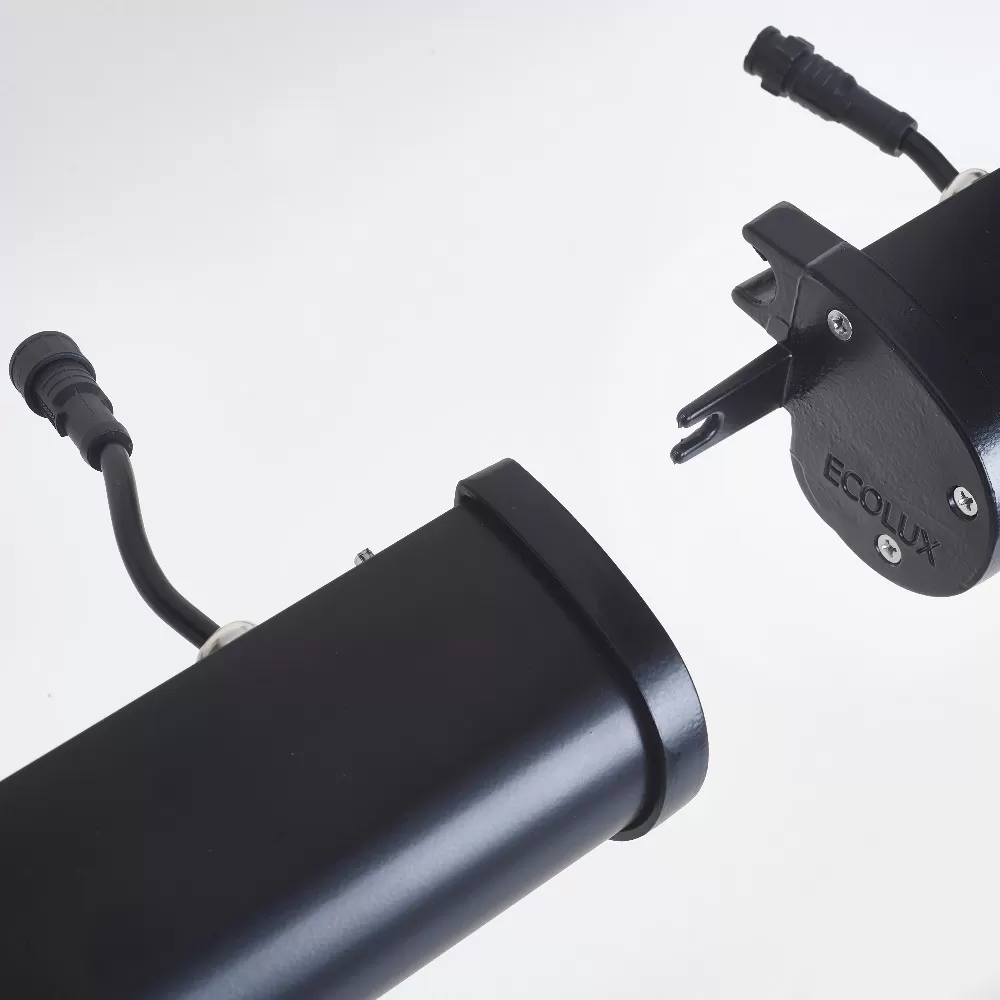

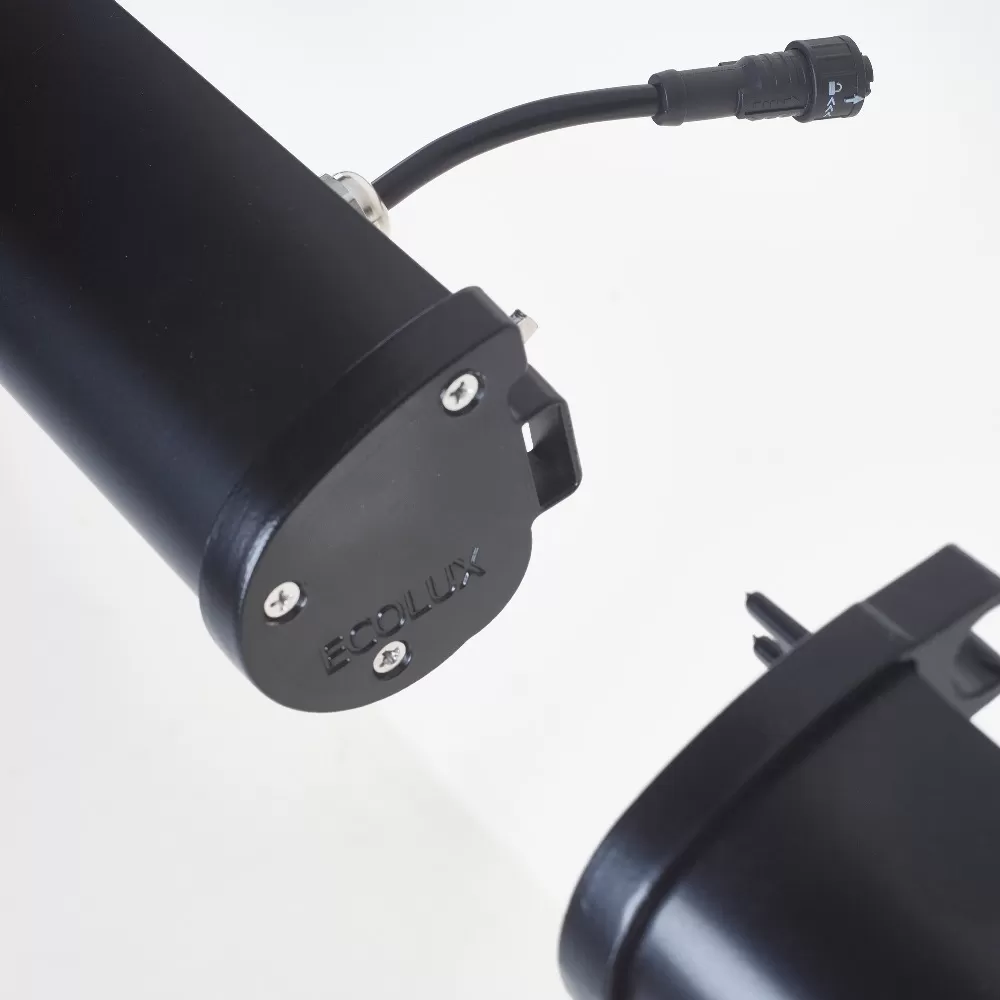

The ECOLUX goes further by incorporating precision-cast aluminium end caps with concealed rear-entry cable management, ensuring a clean, professional finish with no visible wiring. An IP68 connector is neatly housed within a dedicated cast-aluminium chamber, seated in a stepped grommet to allow cables to pass freely and safely through longer runs.

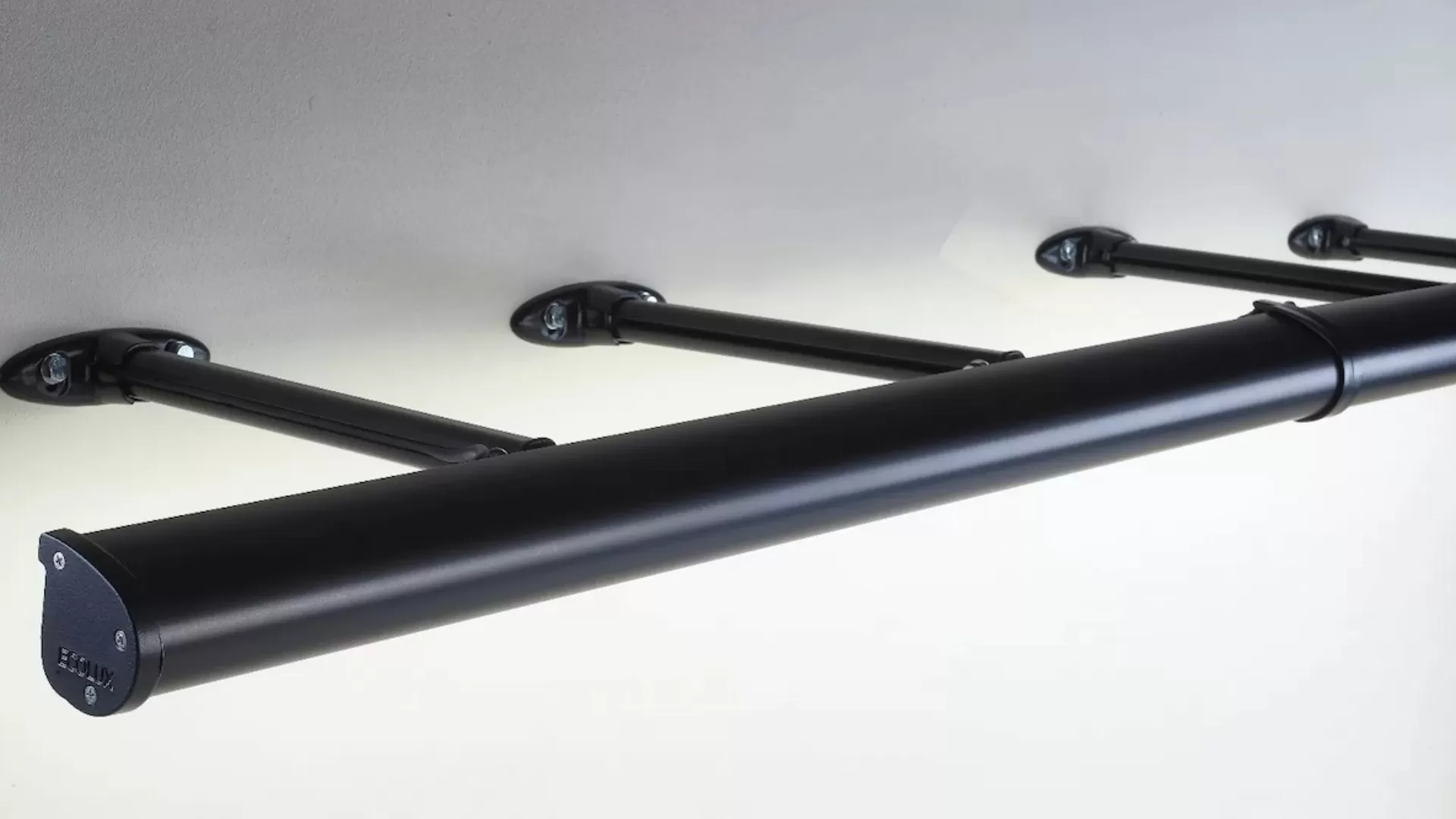

As with all Portland Lighting products, the Ecolux has been independently tested and certified by the Lighting Industry Association laboratories, with documentation available upon request. Full photometric data, compatible with RELUX and DIALUX lighting design software, is also available to download from the Ecolux LED Range.
Engineered with a 58mm low-carbon aluminium extrusion, MAKROLON RE 90° magnifying lens, high-efficacy 195 lm/W LED strip, and Tier 1 Meanwell driver technology, the ECOLUX delivers outstanding efficiency, uniformity and durability in a sleek, contemporary enclosure.
We have a range of other lighting products including menu lighting, menu display cases, and barrier lights.
Technical Info
Experience exceptional, energy-efficient illumination engineered for superior uniformity, durability, and ease of installation:
-

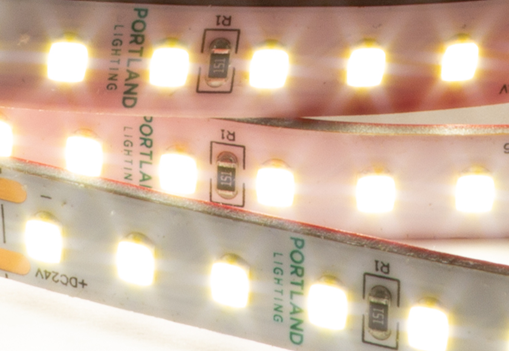

High-efficacy LED strip delivering 195 lm/W with only 7.7W per metre for a 46% energy saving
-
104 LEDs per metre with a choice of 6000K cool white or 3000K warm white at a 120° beam angle
-

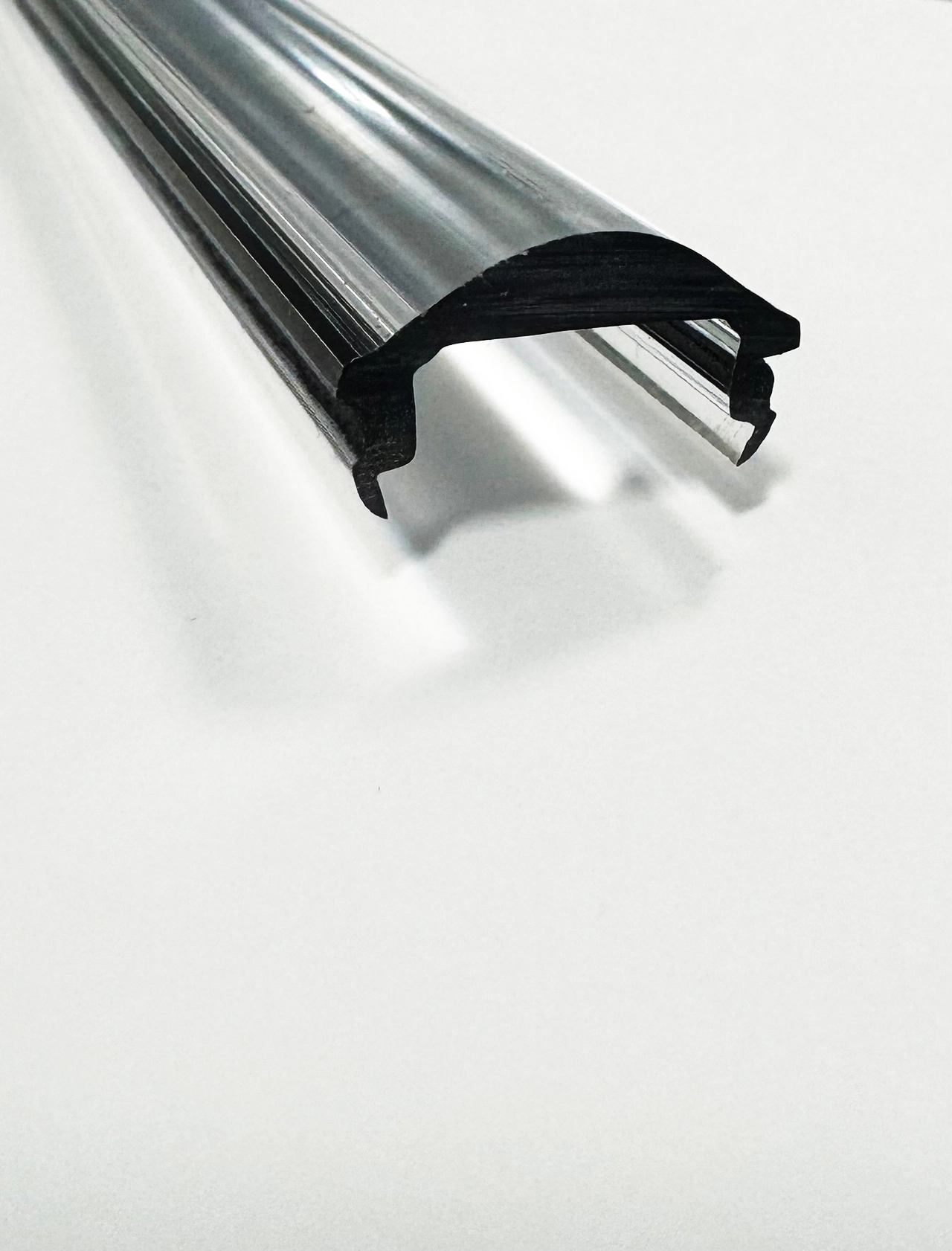

Specially designed 90° MAKROLON RE magnifying lens providing superb, even illumination
-
IP65 LED strip with 50,000+ hours of lamp life, fully CE certified and ROHS compliant
-
Tier 1 Meanwell constant-voltage drivers, IP67 protected with short-circuit, over-current and over-voltage safeguards
-
Fully serviceable slide-in gear trays for rapid maintenance
-
58mm CYCAL 80 certified low-carbon aluminium extrusion, available up to 6000mm
-
Durable Powdura ECO high-performance polyester resin coating
-

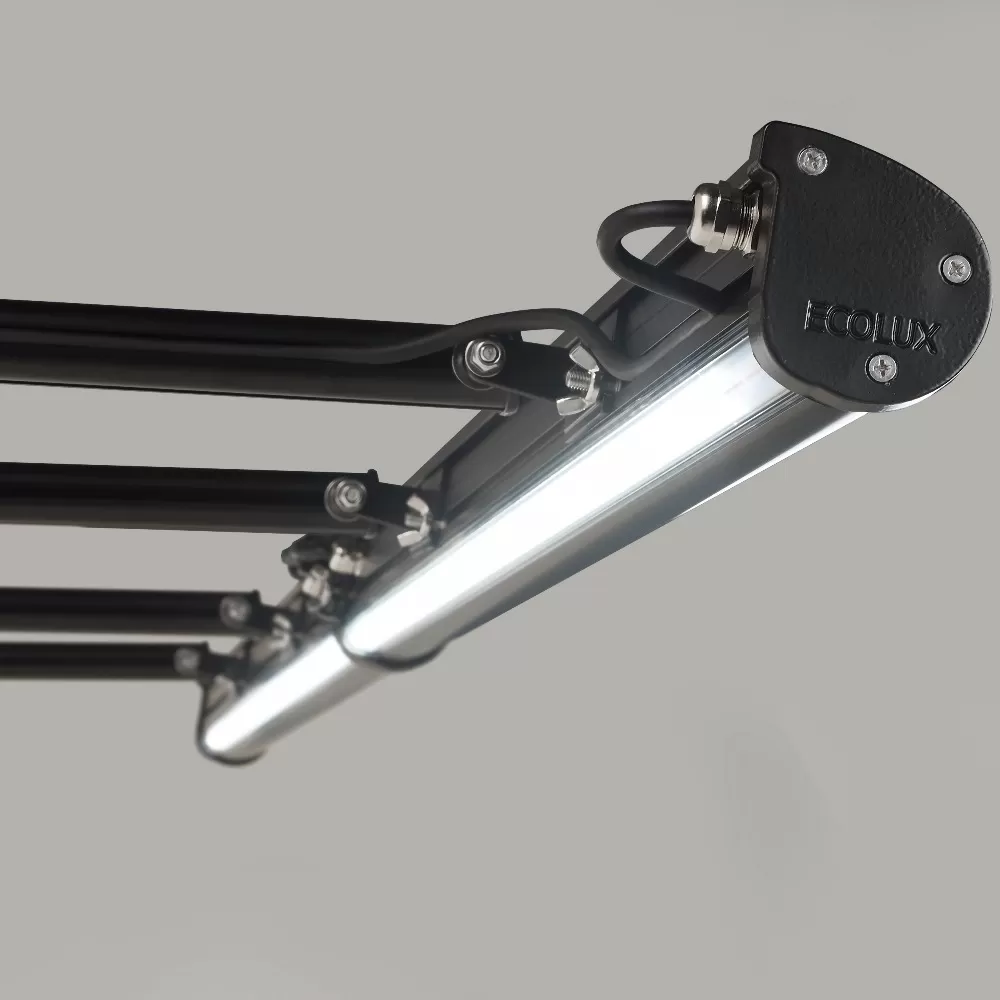

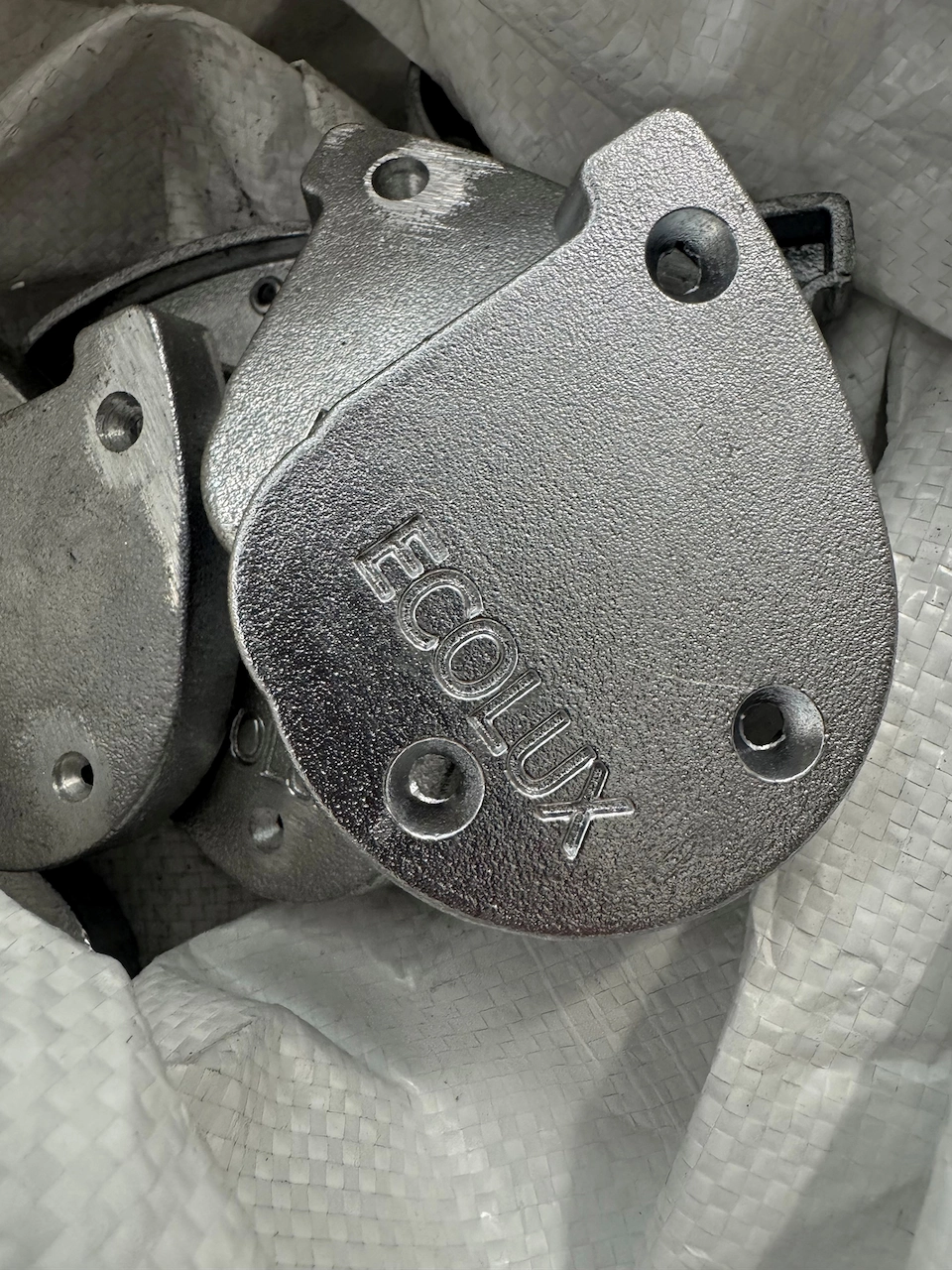

Concealed rear cable entry with die-cast aluminium end caps
-

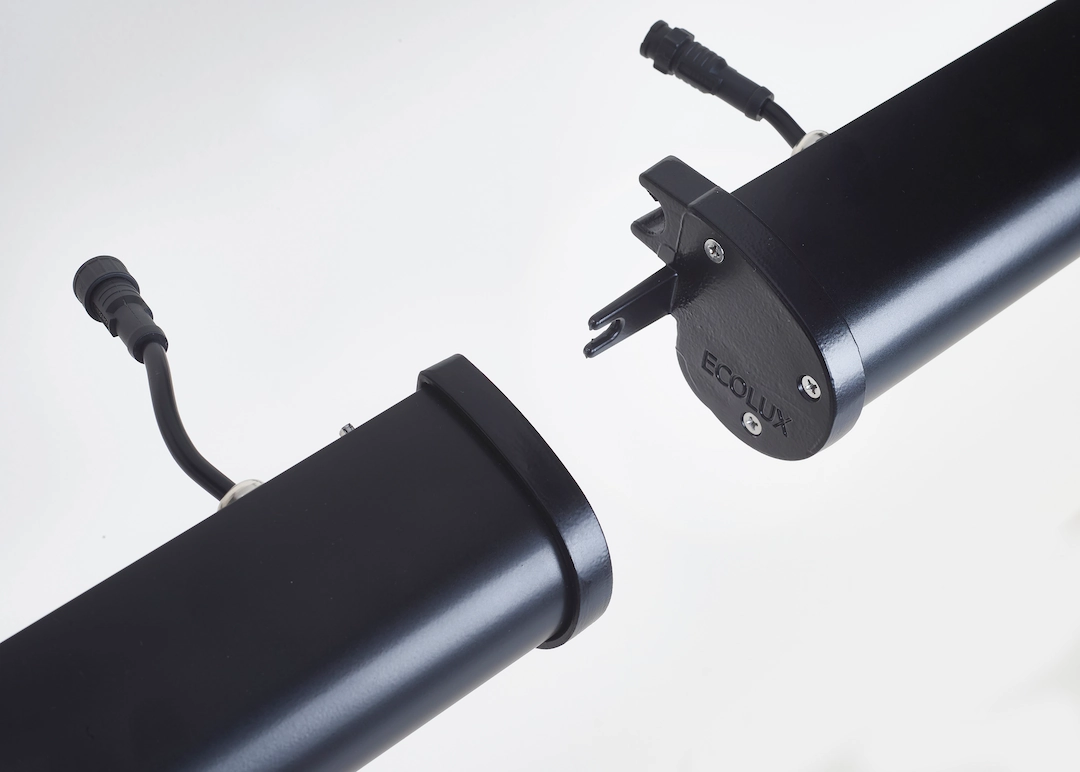

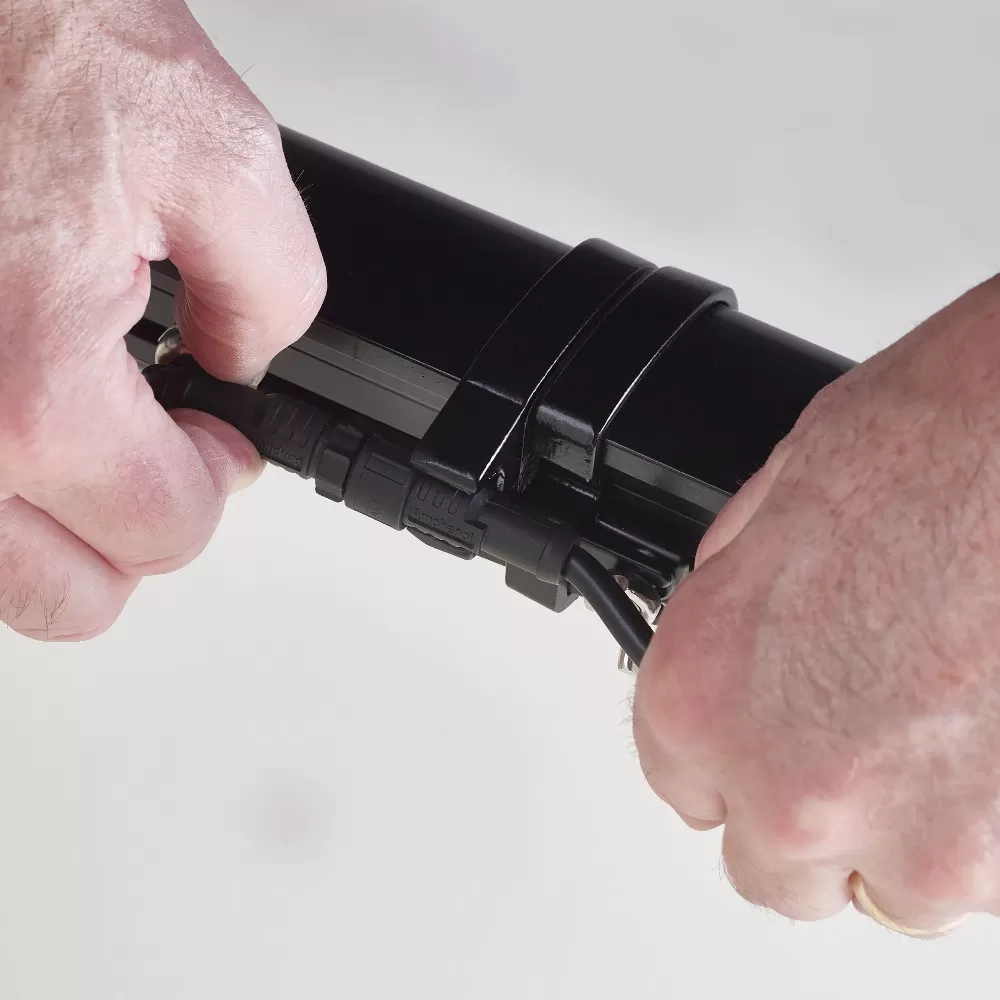

New RAPIDFIT die-cast connectors for forming longer runs and optional IP68 connectors
-

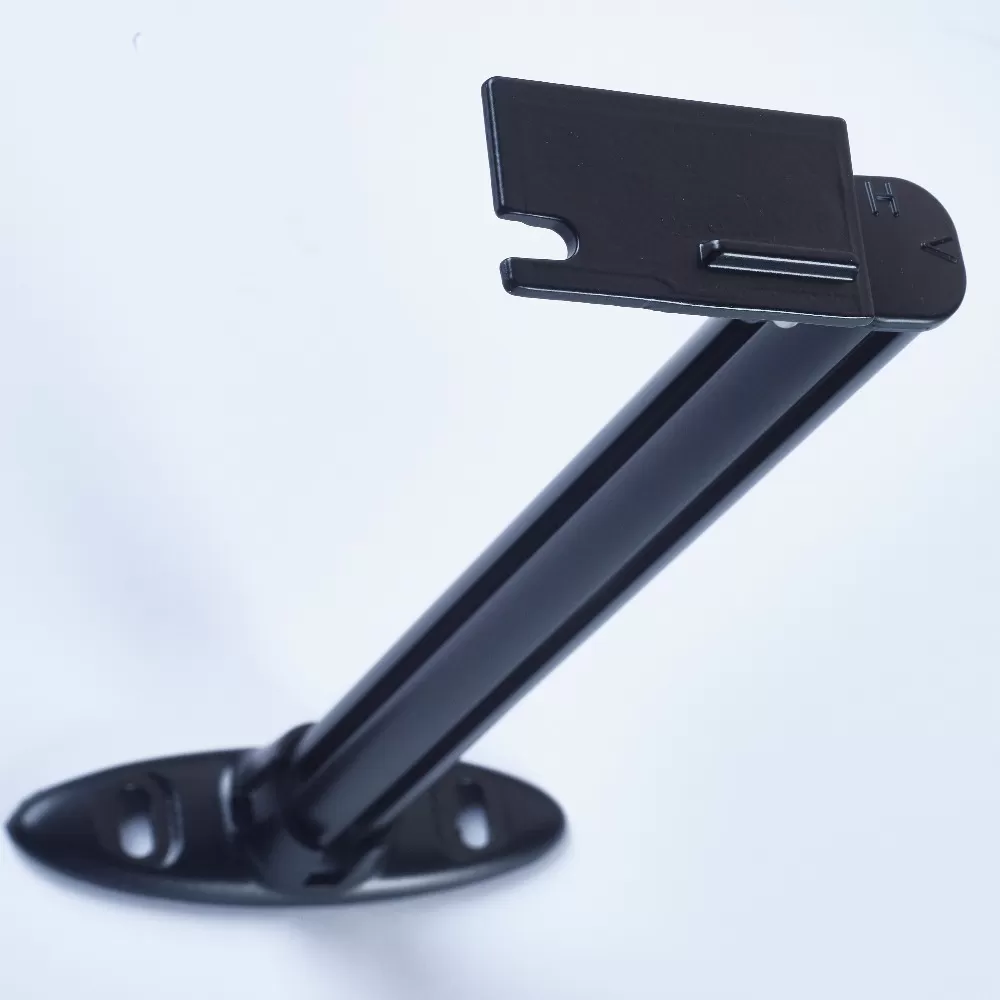

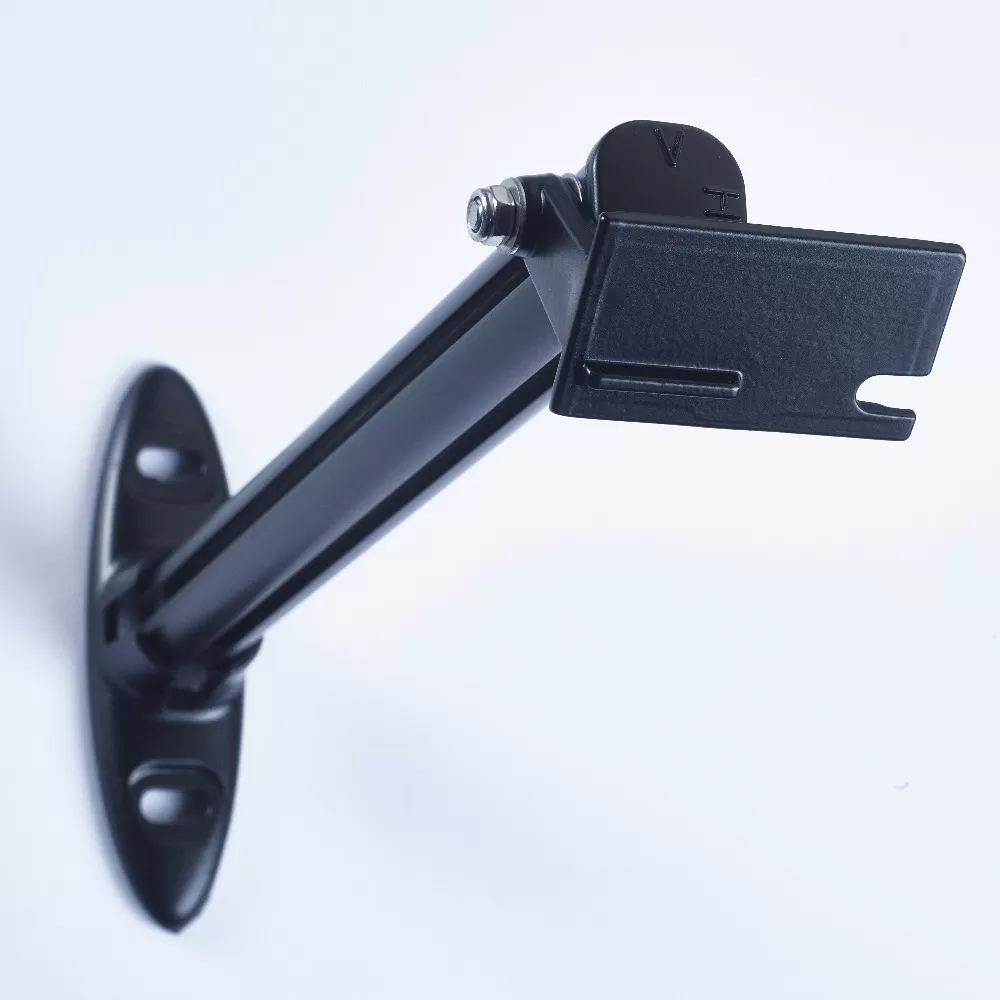

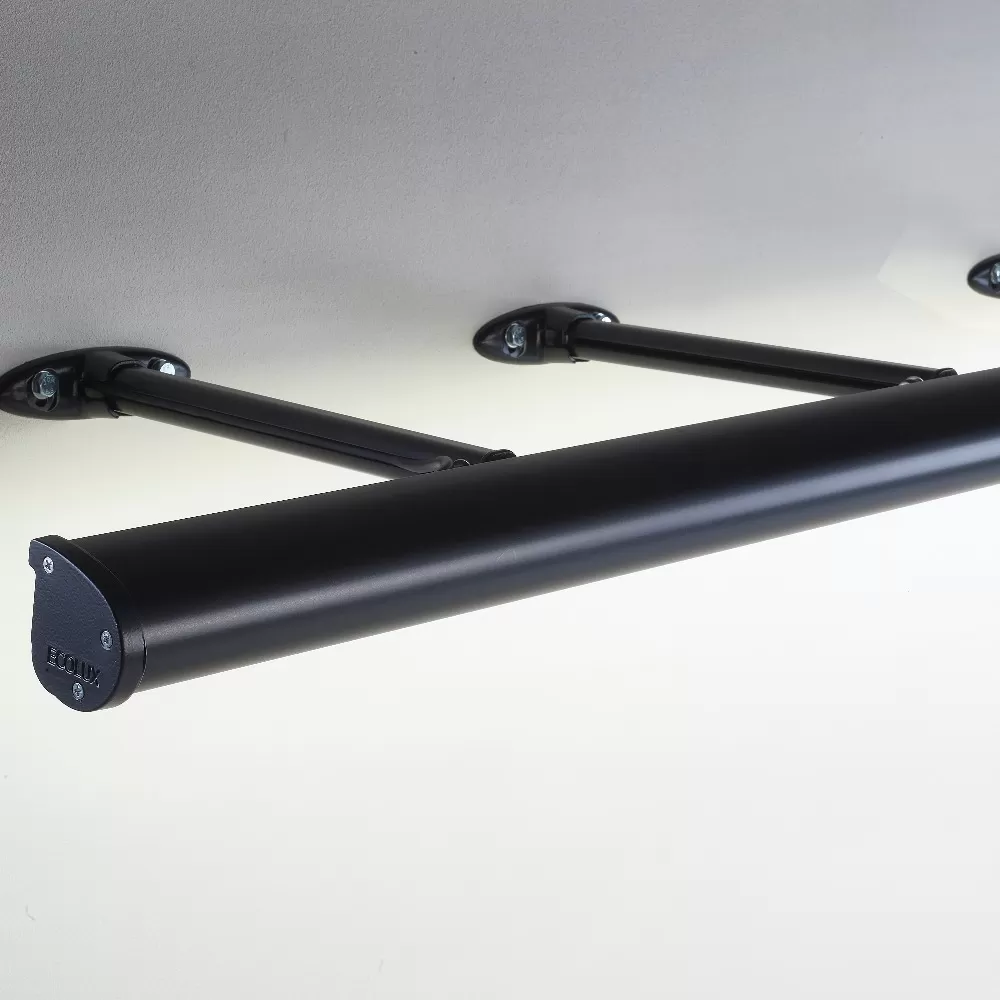

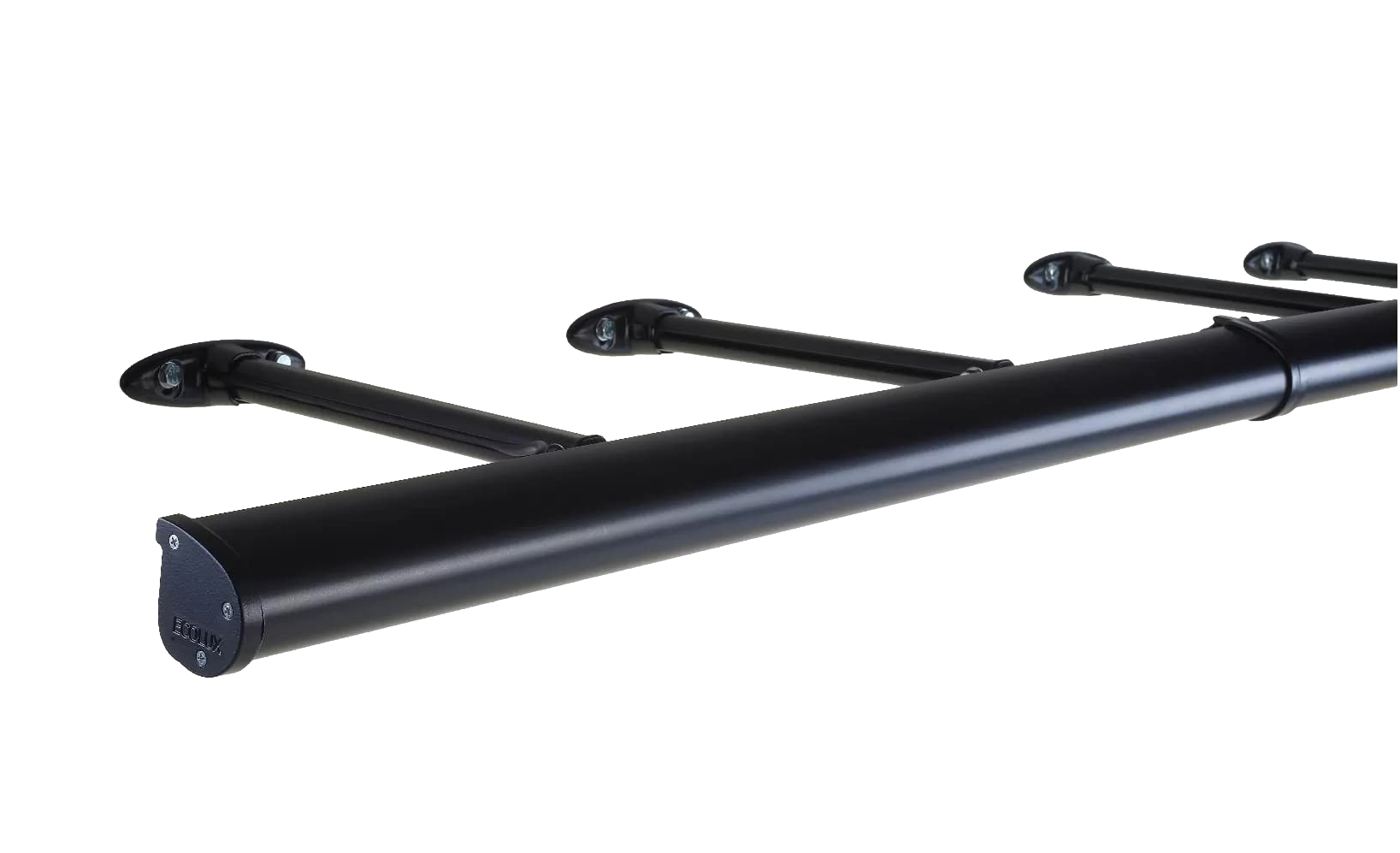

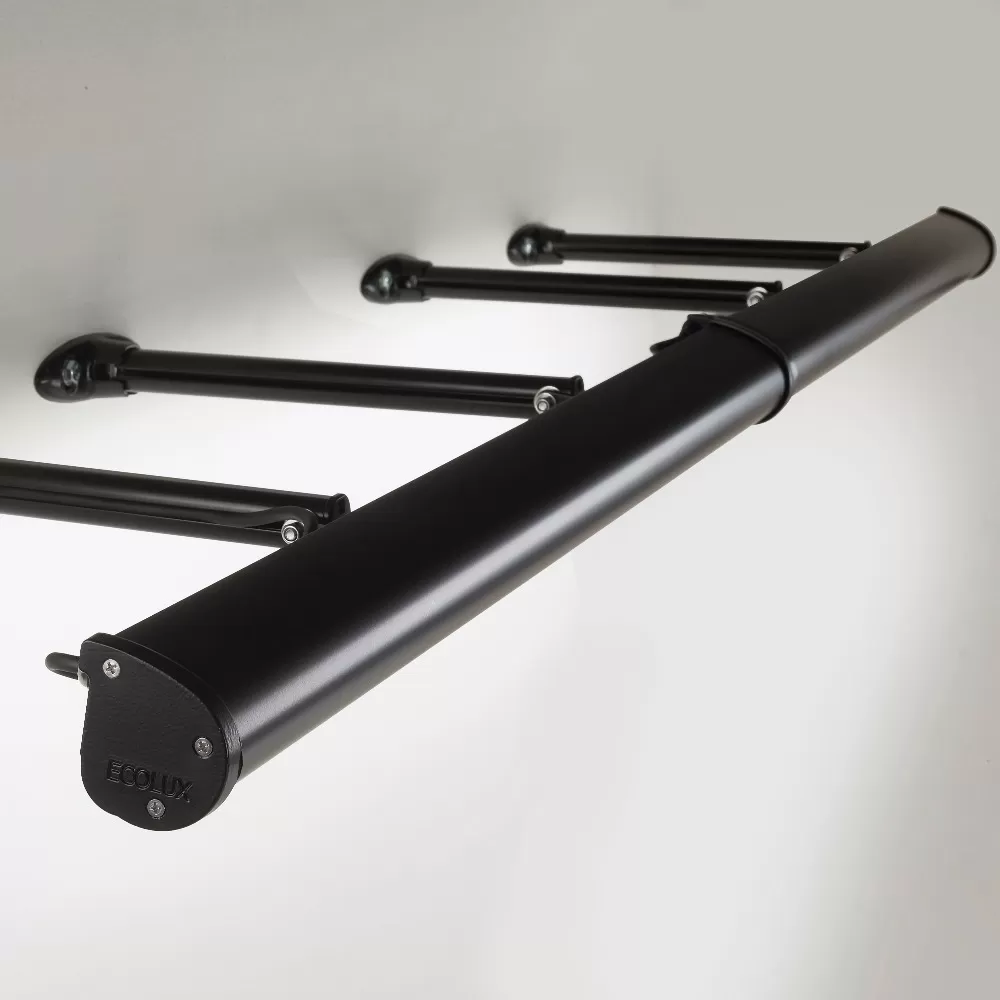

Standard 300mm multi-brackets for horizontal or vertical fixing
-
Spring-clip rapid fixing system for fast installation
-
Optional photocell switch
-
IP66-rated sealed casing, TM66 2.6 certified, and compliant with BS EN 60598-1:2015 and BS EN 60598-2-1:1989 (UK deviations only)
-
RAL and BS colour finishes available on request
Protected by UK Registered Design 602138 and supplied with a full 5-year parts warranty
